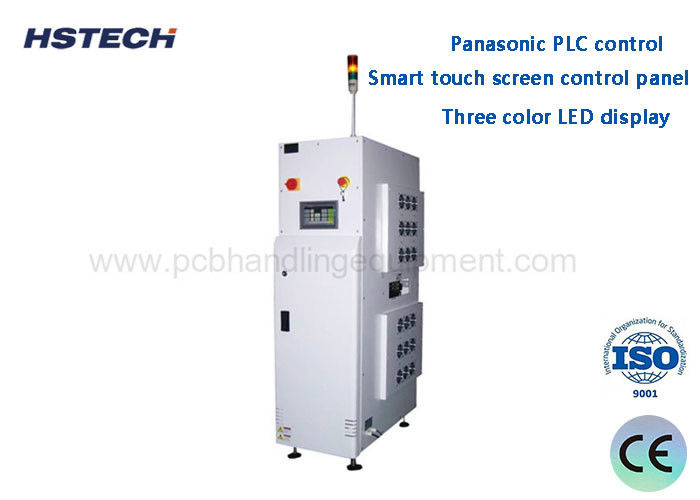

SMT Vertical PCB Buffer Machine Smart Touch Screen Panasonic PLC Control

High Speed Industrial Vertical PCB Buffer Storage Machine Equipped With Panasonic PLC And Intelligent Touch Screen Control Panel For SMT PCB Handling Equipment

The Multi Function Vertical PCB Buffer is a highly versatile and efficient SMT PCB Vertical Buffer designed to optimize the material flow in modern automated assembly lines. As a critical PCB Handling Machine, it serves as an intelligent storage and transport station between different SMT production line equipment. Whether you need to balance the cycle time between machines, temporarily store boards before inspection, or manage NG/OK Buffer Conveyor sorting, this Vertical Buffer Module (VBM) delivers seamless integration. It is the ultimate SMT Inspection Conveyor solution for maximizing your factory's throughput and floor space utilization.

1. Panasonic PLC control.
2. Smart touch screen control panel.
3. With FIFO and By-pass function, or cutomized to multiple function.
4. Using servo motor for accuracy positioning.
5. Hiwin leadscrew for width adjustment, smooth and stable.
6. Smooth magazine lifting device, precision servo driving.

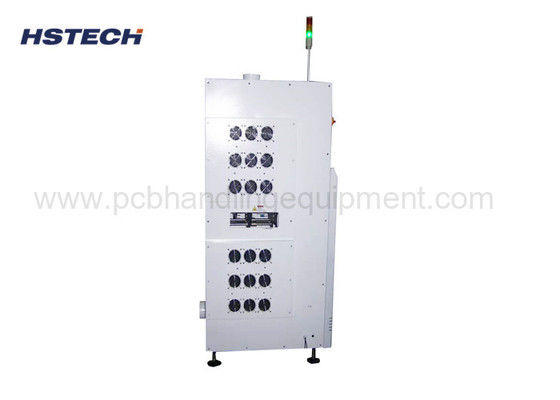

7. Optional fan and exhaust port for heat dessipation.
8. English operation interface.
9. The whole machine is small volume, won't take much factory space.

• SMT Line Buffer Station: Acting as a SMT PCB Vertical Buffer between high-speed placement machines and reflow ovens to balance line speed.
• Inspection Line Storage: Serving as an AOI/SPI PCB Vertical Buffer to store boards before or after automated optical inspection.
• Cooling Process: Functioning as a Cooling Vertical Buffer / Cool Buffer to allow sufficient cooling time for soldered PCBs.
• Quality Control Sorting: Utilized as an NG/OK Buffer Conveyor to automatically route boards based on inspection results.
• Automated Storage: Integrating with Automatic Magazine Loader/Unloader for fully automated PCB Handling Machine operations.

1. Engineered for Reliability: Built with premium components and servo motor drive systems to ensure smooth, jam-free PCB Handling Machine operations 24/7.
2. Global Quality Standards: Our SMT PCB Vertical Buffer is manufactured under strict quality control, meeting international standards for SMT production line equipment.
3. Customization Capability: We provide tailored Turnkey SMT solution support, adjusting PCB size, buffer capacity, and software logic to match your specific PCB conveyor system needs.
4. Cost-Effective Efficiency: By reducing manual handling and optimizing line balancing, our Vertical Buffer Module (VBM) significantly lowers your operational costs while boosting yield.
5. Comprehensive Support: From installation guidance to after-sales technical support, we ensure your Automated PCB storage system runs at peak performance.

Ready to take your PCB conveyor system to the next level? Send us your specific PCB sizes and line requirements today. Our engineering team will customize a tailored Turnkey SMT solution featuring our reliable Vertical Buffer Module (VBM) to perfectly match your manufacturing needs.
