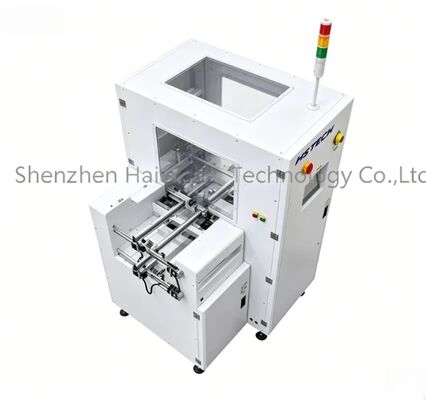

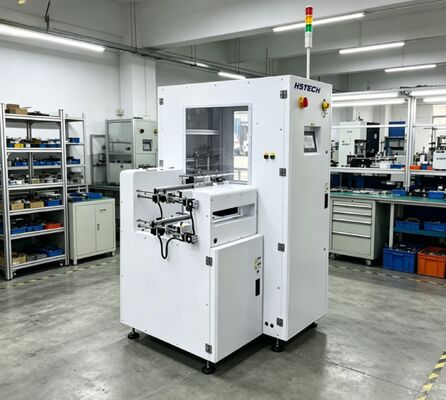

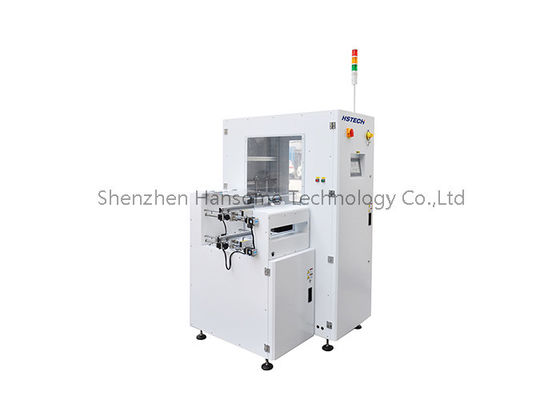

Easy Operation SMT Vertical PCB NG Buffer Conveyor With Touch Screen Intelligent Control

In modern Surface Mount Technology (SMT) lines, the synchronization between high-speed Automated Optical Inspection (AOI) and Solder Paste Inspection (SPI) machines is critical. Our AOI/SPI Buffer System is engineered to serve as the intelligent heartbeat of your production line. Designed to seamlessly bridge the gap between inspection equipment and downstream processes, this buffer ensures a continuous, uninterrupted material flow. By intelligently managing the transfer of Printed Circuit Boards (PCBs), it effectively prevents bottlenecks, eliminates the need for manual intervention, and significantly boosts your overall line throughput and efficiency.

1. Use friendly soft touch LED membrane control panel.
2. FIFO,LIFO,Loader, Unloader,Reject mode selected.

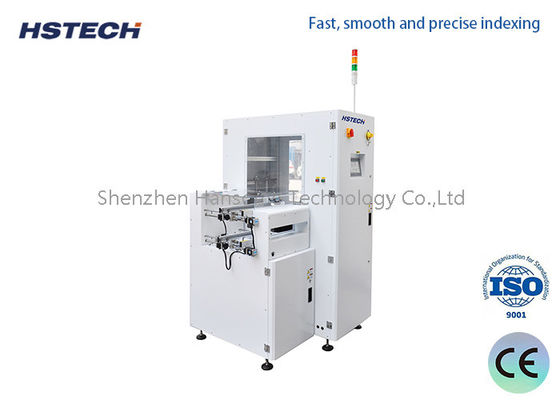

3. Fast, smooth and precise indexing.
4. Pneumatic clamps provided for magazine alignment.
5. Pneumatic pusher’s pressure regulated.
6. Threshold’s system provided.
7. Additional magazines buffering capacity available upon request.
8. SMEMA compatible.

It can isolate the input and output parts of the circuit to prevent mutual interference.
It provides buffering function to prevent the circuit load from affecting the driving circuit.

It can amplify the input signal of the circuit and improve the signal strength.
It ensures signal integrity and avoids signal attenuation caused by load.

It realizes impedance matching between various parts of the circuit and improves signal transmission efficiency.
It matches circuit parts with different characteristic impedances to avoid problems such as signal reflection.

It can complete the conversion between different voltage levels, such as TTL level and CMOS level.
It ensures that various parts of the circuit can work normally and avoid voltage mismatch problems.

• Open collector buffer
• Tri-state buffer
• Differential buffer
• Level conversion buffer

• High-Mix, Low-Volume Production: Rapidly adapts to frequent product changeovers without extensive reprogramming.
• High-Speed SMT Lines: Acts as a vital shock absorber between high-speed printers, placement machines, and inspection stations.
• Automotive & Medical PCB Manufacturing: Ensures strict quality control flow with zero manual handling between SPI and AOI.
• Consumer Electronics Assembly: Maximizes output for high-volume, standardized PCB processing.

We understand that downtime is the enemy of profitability. Unlike standard buffers, our system is built with premium industrial-grade components to guarantee 24/7 reliability. We offer extensive customization options to match your unique factory layout and specific machine configurations. Backed by comprehensive technical support, rapid spare parts availability, and a proven track record of optimizing SMT line efficiency, we provide a turnkey solution that delivers immediate ROI.

Don't let inspection bottlenecks slow down your production. Contact our engineering team today for a free consultation, detailed CAD layout, or a customized quotation. Let us help you achieve the seamless, high-efficiency manufacturing line your business deserves.
