High Precision 5-Axis Dual Table Automatic Soldering Robot for Spot & Drag Soldering

Name: High Precision 5-Axis Dual Table Automatic Soldering Robot for Spot & Drag Soldering
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: HS-S5331R
Price: 3,450.00 USD
Availability: InStock

Markenbezeichnung:	HSTECH
Modellnummer:	HS-S5331R
MOQ:	1 Stk
Preis:	negotiable
Zahlungsbedingungen:	T/T
Versorgungsfähigkeit:	100 Stück/Monat

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

China

Zertifizierung:

CE,ISO

Plattform:

Doppeltisch

Achse:

5 Achse

Motor:

Schrittmotor

R-Achse:

360

Programmierung:

Handbuch mit unterrichtendem Kasten

Garantie:

1 Jahr

Verpackung Informationen:

Aus Holz

Versorgungsmaterial-Fähigkeit:

100 Stück/Monat

Hervorheben:

5-axis automatic soldering robot

dual table soldering robot with precision

spot drag soldering robot

Beschreibung des Produkts

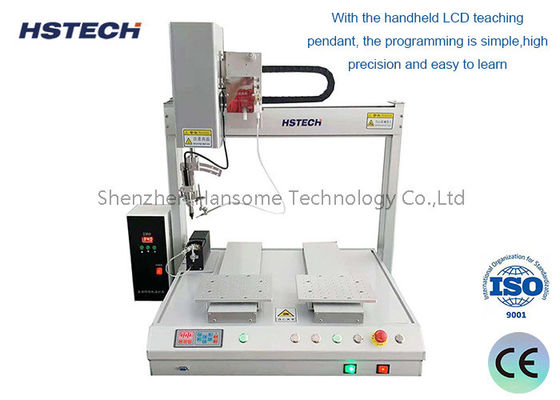

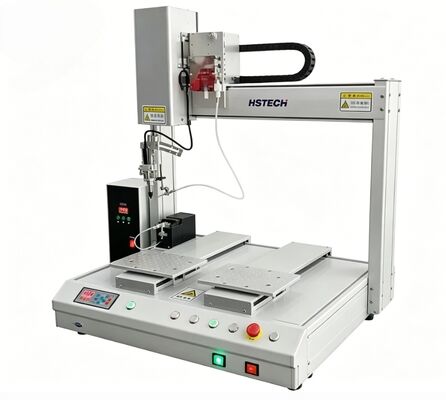

High Precision 5-Axis Dual Table Automatic Soldering Robot

Model HS-S5331R - Advanced automated soldering solution for spot and drag soldering applications

Product Overview

The HS-S5331R 5 Axis Dual Table Robotic Soldering Machine by HSTECH is a high-efficiency, precision-engineered automated soldering solution designed to streamline electronic assembly processes. Built for reliability and flexibility, it delivers consistent, high-quality soldering results while reducing manual labor and production errors.

Core Features

5-Axis Soldering Capability: Enables multi-angle, complex soldering tasks with high adaptability to diverse product designs
Stepper Motor Control: Ensures precise, repeatable movement for consistent soldering performance
Heating & Broken Tin Control: Optimizes solder melting and application, preventing defects like cold joints or solder bridges
High-Quality Linear Guide: Guarantees smooth, flat movement for stable, vibration-free operation
Flexible Soldering Options: Supports spot soldering, drag soldering, and other custom soldering functions
Durable Aluminum Alloy Frame: Anti-bend, anti-rust construction built for long-term industrial use
Teach Pendant Programming: User-friendly manual programming with storage for up to 99 program groups
Smoke Purification Filter System: Extends soldering iron lifespan and improves soldering quality by eliminating harmful fumes

Technical Specifications

Parameter	Specification
Model	HS-S5331R
X/Y1/Y2/Z Working Range	500 × 300 × 300 × 100mm
R Axis	360°
XYZ Speed	Max 300mm/s
Drive System	Stepping Motor + Timing Belt
Repeat Accuracy	±0.02mm
Operation Method	Auto
Programming	Manual Programming (Teach Pendant)
Control System	Constant Control System
Weight	90kg
Dimension (L × W × H)	716 × 585 × 800mm
Power Supply	220V 50-60Hz
Temperature Control Range	0-550℃
Iron Tip Cleaning	Air Cleaning / Pneumatic
External Interface	USB + RS232
Soldering Method	Point Soldering / Drag Soldering
Working Temp/Humidity	5-40℃ / 20-90% RH

Key Advantages

Dual Table Design: Enables simultaneous loading/unloading and soldering operations, doubling production efficiency
High Precision & Consistency: ±0.02mm repeat accuracy ensures uniform solder joints, eliminating human error
User-Friendly Operation: Teach pendant programming requires minimal training, allowing quick setup for new products
Low Maintenance: Durable components and built-in smoke purification reduce downtime and extend equipment lifespan
Wide Compatibility: Suitable for soldering PCBs, connectors, wires, and other electronic components across multiple industries

Application Scenarios

Ideal for mass production and precision assembly in:

Consumer electronics (smartphones, tablets, home appliances)
Automotive electronics (sensors, control modules)
Telecommunications equipment (circuit boards, connectors)
Industrial electronics (control panels, power supplies)

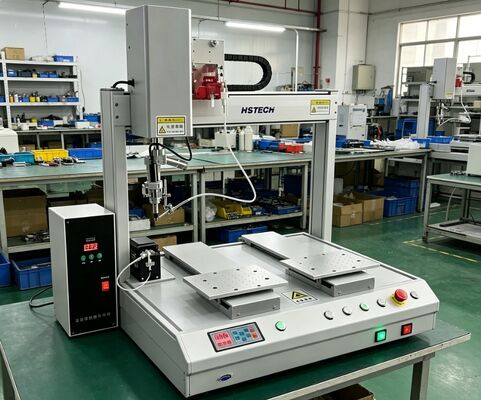

Product Images
